In 1970, Kobayashi Engineering Works, Ltd. had a technical cooperation with Kampf in West Germany to start manufacturing slitters and winders. (The cooperation was dissolved in 1989.) At the beginning, the technology was followed on the philosophy brought up in Europe. And then later in 80s, the advanced technology was developed and established in order to fulfill the demand of Japanese market. Finally, Kobayashi's slitter and winder, especially the primary slitters and take-up winders obtained the patronage of the customers, resulted in the delivery of over 120 slitters (80 in Japan and 40 overseas) and 60 winders (30 in Japan and 30 overseas). Into the 21st century, we plan to go into the fields of small-sized, middle-sized and all-purpose slitters.
FILM SLITTER (TYPE : FUS)
Features
- Roll face can be up to 8,600 mm wide.
- HIGH SPEED OPERATION (1,220 m / min) for OPP film.
- Can slit and wind EXTREMELY THIN FILM (1 micron) PET film.
- CUT THE DOWNTIME of the machine by automatic positioning of slitting units,
contactarms and winding arms.
Specification
| Web |
Thickness |
Width |
Machine Speed |
Roll Face Length |
| PET |
9-25 µm |
8,500 mm |
800 m/min |
8,600 mm |
| OPP |
10-25 µm |
4,000 mm |
1,220 m/min |
4,300 mm |
| PET |
1-25 µm |
3,400 mm |
600 m/min |
3,600 mm |

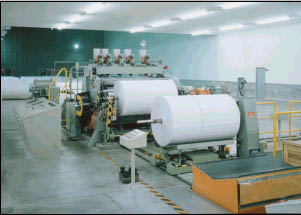

PAPER SLITTER (TYPE : PRS)
Features
- HIGH SPEED OPERATION performed by appropriate roll surface and rolls path.
- One axle winding with large diameter and multi slitting is performed by Kobayashi's invented WINDING SHAFT DEFLECTION CONTROL DEVICE.
- High speed slitting and winding of Information industrial paper, thermo sensitive paper or pressure sensitive paper WITHOUT CAUSING COLOR.
- APPROPRIATE WINDING TENSION and WINDING HARDNESS by the combination of center winding and the contact roll.
- CUT DOWNTIME of the machine by automating the slitting width change.
Specification
| Web |
Pressure sensitive paper |
| Basis weight |
30-200 g/m2 |
| Width |
1550-2640 mm |
| Machine speed |
Max.1500 m/min |
| Slitting |
Max. 12 plies |
| Winding diameter |
Max.Ø1200 mm |
| Winding weight |
Max.1750 Kg |
WINDER
Features
- Splicing with NO WRINKLE and SHORT TIME by the integration of cross-cutting and static electricity.
- HYPER BENDING CONTACT ROLL achieves an appropriate winding nip pressure for WINDING of WIDER FILM.
- Winds EXTREMELY THIN PET FILM (1 micron) by a tandem winder.
- HIGHEST QUALITY WINDING performed by the best film paths and the best position of the contact roll.
Specification
| Web |
Thickness |
Width |
Machine Speed |
Roll Face length |
Type |
| PET |
9-25 µm |
8,800 mm |
400 m/min |
8,900 mm |
|
| PET |
1-6 µm |
5,400 mm (2700 mm x 2) |
300 m/min |
2,900 mm |
Tandem |
